Product Description:
Machine Functions
Flat Die Pellet Mill works on a vertical design, using gravity as the main force for feeding the material through the machine.
Flat Die Pellet Mill has a horizontal die, with a series of rollers sitting on the die. When material goes in from the top feed inlet, it is compressed between the rollers and die.
Die-Rotating type machine is mainly used for animal feed pellet like grain materials. If raw materials have grass, also use a Roller-Rotating pellet machine.
Roller-Rotating type pellet machine mainly applies to wood biomass pellet, and materials are wood branch, etc.
Product Features
1. Simple structure.
2. Easy to clean and maintain.
3. Spare parts are also easy to change, less cost for rollers and dies.
4. Simple operating, just 1 or 2 workers are OK.
5. The sort of pelletizer is easier to clean than the ring dies pellet mill.
6. Be able to change new die and rollers faster to save time to produce pellets.
7. Small and lightweight can be used in the home, small farm, and light industrial.
Motor-type Parameter
| Model | Pellet size(mm) | Capacity（kg/h） | Main Power（kw） | Machine size(mm) | Weight（kg） |
| LM120 | 2-8 | 60-100 | 3 | 750*310*620 | 80 |
| LM150 | 2-8 | 150-220 | 4 | 770*340*680 | 95 |
| LM210 | 2-8 | 200-300 | 7.5 | 1000*430*950 | 190 |
| LM230 | 2-8 | 300-400 | 11 | 1150*500*970 | 290 |
| LM260 | 2-8 | 400-600 | 15 | 1200*500*10330 | 330 |
| LM300 | 2-8 | 600-800 | 22 | 1320*530*1070 | 440 |
| LM400 | 2-8 | 800-1000 | 30 | 1450*620*1180 | 600 |

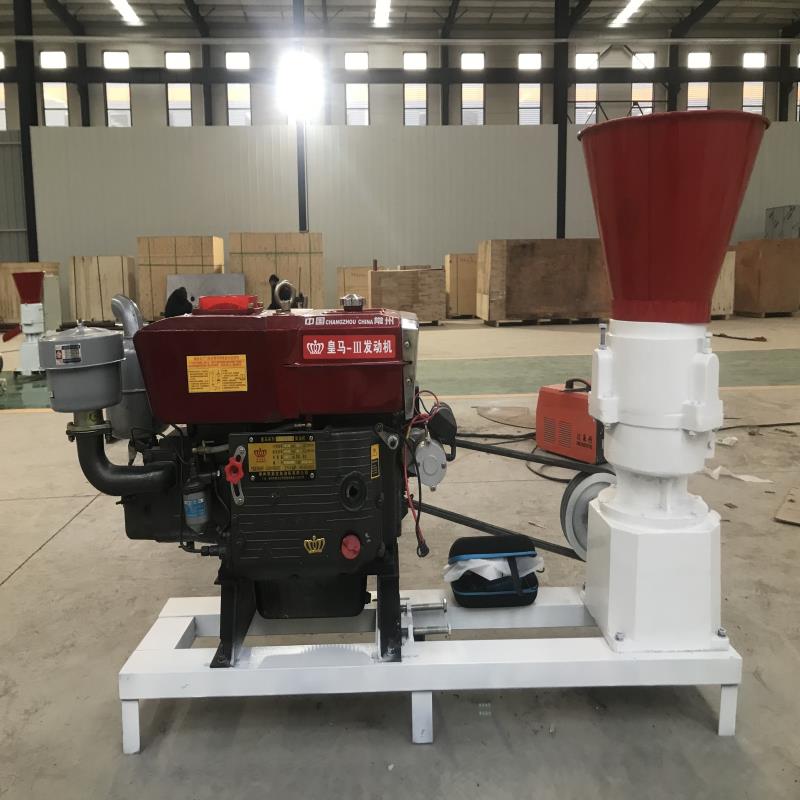

Diesel-type Parameter
| Model | Pellet size(mm) | Capacity（kg/h） | Main Power（hp） | Machine size(mm) | Weight（kg） |
| LM120 | 2-8 | 60-100 | 8 | 730*320*670 | 120 |
| LM150 | 2-8 | 150-220 | 8 | 870*460*730 | 130 |
| LM210 | 2-8 | 200-300 | 15 | 1180*560*1020 | 320 |
| LM230 | 2-8 | 300-400 | 22 | 1180*560*950 | 360 |
The pellet produced by the flat die machine has a smooth surface and has sufficient internal ripening degree, which can improve the digestion and absorption of nutrients, and can kill common therapeutic microorganisms and parasites.
It is suitable for feeding rabbits, fish, ducks, and pigeons. poultry farmers can achieve higher economic benefits than using mixed powdered feeds.

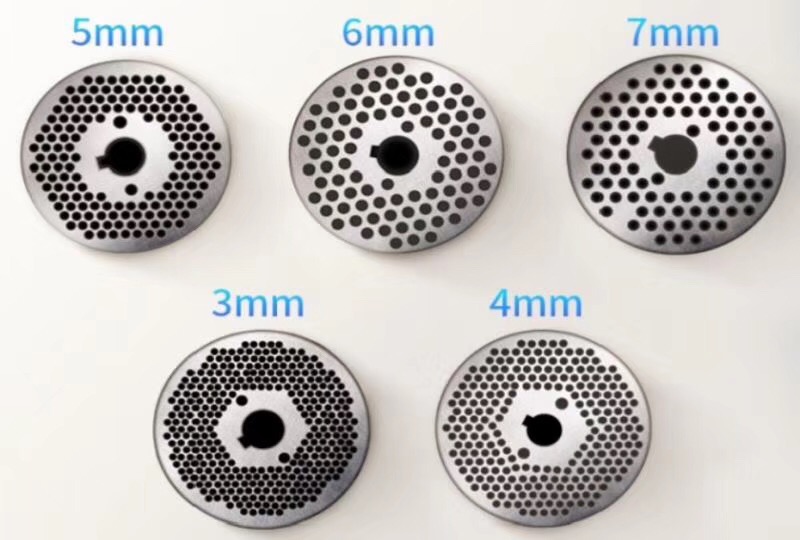

Moreover, the particle size can be adjusted by changing the mold.
